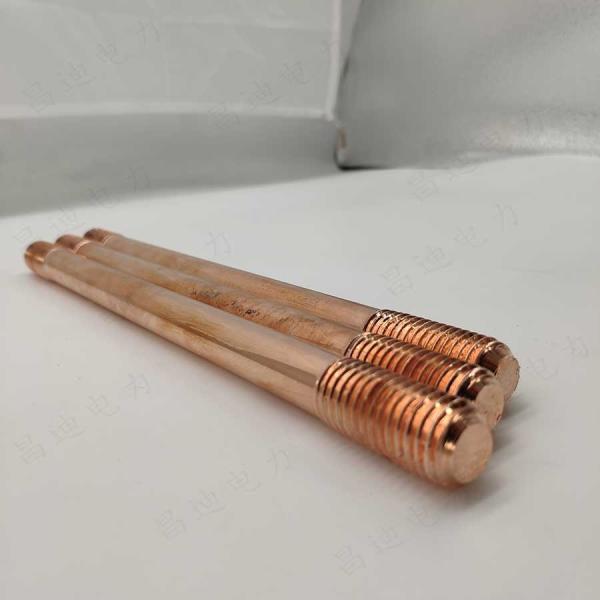

Grounding System 16mm Earth Rod Copper Layer ≥0.254mm with Threads
The steel core is often coated with copper in various materials, such as copper-clad steel bar, copper-clad steel tape and copper-clad steel wires (which can be single round wires or stranded wires).
In terms of manufacturing process, there are two different types of such materials, namely continuous casting copper-clad steel and electroplating copper-clad steel.
The copper-clad-steel grounding material is a very cost effective option, much cheaper than pure copper rod. Its copper coating is completely uniform, with a high tensile strength, and it will not crack or take off when the conductor is bent. Moreover, this material has a high efficiency of reducing the resistance; when it is used for the design of the high-resistance section, the length of the horizontal grounding body can be reduced by 1/3, which greatly reduces the excavation amount of the earthwork.
| Parameter | Value |
|---|---|
| Manufacturing Craft | Continuous Plating |
| Weight | 1.6kg |
| Diameter | 16mm |
| Copper Layer | ≥0.254mm |
| Material | Copper-Bonded Steel |
| Thread Type | M8 |
| Length | 4ft |
| Head Type | Pointed Or Threaded |
| Product Type | One End Pointed, One End Flat, With Two Threads |
| Tensile Strength | 450-600MPA |
To ensure the safety of electrical equipment, there are three major reasons to properly maintain ground connection. Firstly, contact must be established between the non-current-carrying metal components of electrical system and the ground line. This helps the components stay at a neutral potential. Secondly, many paths should be created for strong current, such as lightning or surge. This enables large amount of electrons to disperse into the ground instantly. Finally, the leakage of charges from the equipment enclosure must be facilitated. When the the power supply system ground wire is connected to the distribution box, the National VI protection device gets connected for guiding fault current.
We provide technical support and services for 16mm Earth Rod. Our services include:
We also offer customized solutions to meet your specific needs and requirements.
Packaging and Shipping for 16mm Earth Rod:
The 16mm Earth Rod will be shipped in a robust cardboard box with the following dimensions: Length 300mm, Width 200mm, Height 200mm. The box will be filled with bubble wrap and foam to ensure the safe delivery of the product.
Q: What is the Brand Name of the 16mm Earth Rod?
A: The Brand Name of the 16mm Earth Rod is QDCD.
Q: What is the Model Number of the 16mm Earth Rod?
A: The Model Number of the 16mm Earth Rod is CCSER.
Q: Where is the 16mm Earth Rod from?
A: The 16mm Earth Rod is from China.
Q: Is the 16mm Earth Rod ISO certified?
A: Yes, the 16mm Earth Rod is ISO certified.
Q: How many 16mm Earth Rods can you supply per day?
A: We can supply up to 1000pcs of 16mm Earth Rods per day.
|
|
